Create diagrams from text

Text-defined diagrams turn readable source into a published diagram. This guide applies to the published Forge app, Cloud version 3.0.0.

Choose the source language

Macro	Source language	Good fit
Mermaid UML Diagram	Mermaid	Flowcharts, sequence diagrams, state diagrams, Gantt charts, and other common diagram types
Graphviz Diagram	DOT	Dependency graphs and relationship maps with calculated layouts
PlantUML Diagram	PlantUML	UML and other diagrams supported by PlantUML syntax

The languages are not interchangeable. Insert the macro that matches the source you intend to maintain.

Create and publish a diagram

Edit a Confluence page.
Insert Mermaid UML Diagram, Graphviz Diagram, or PlantUML Diagram.
Enter source for the selected language.
Review the preview. Fix the first reported syntax error before continuing.
Choose Save and wait for the editor to return to Confluence.
Choose Publish for a new page or Update for an existing page.
Reload the published page and review the complete diagram.

Saving the macro and publishing the Confluence page are separate steps.

Try a Mermaid flowchart

Insert Mermaid UML Diagram and enter:

flowchart LR
  Request --> Review
  Review --> Approved

The preview should show three nodes connected from left to right. Mermaid also supports samples, configuration, Full view, image export, and manual preview control. See Use Mermaid editor tools.

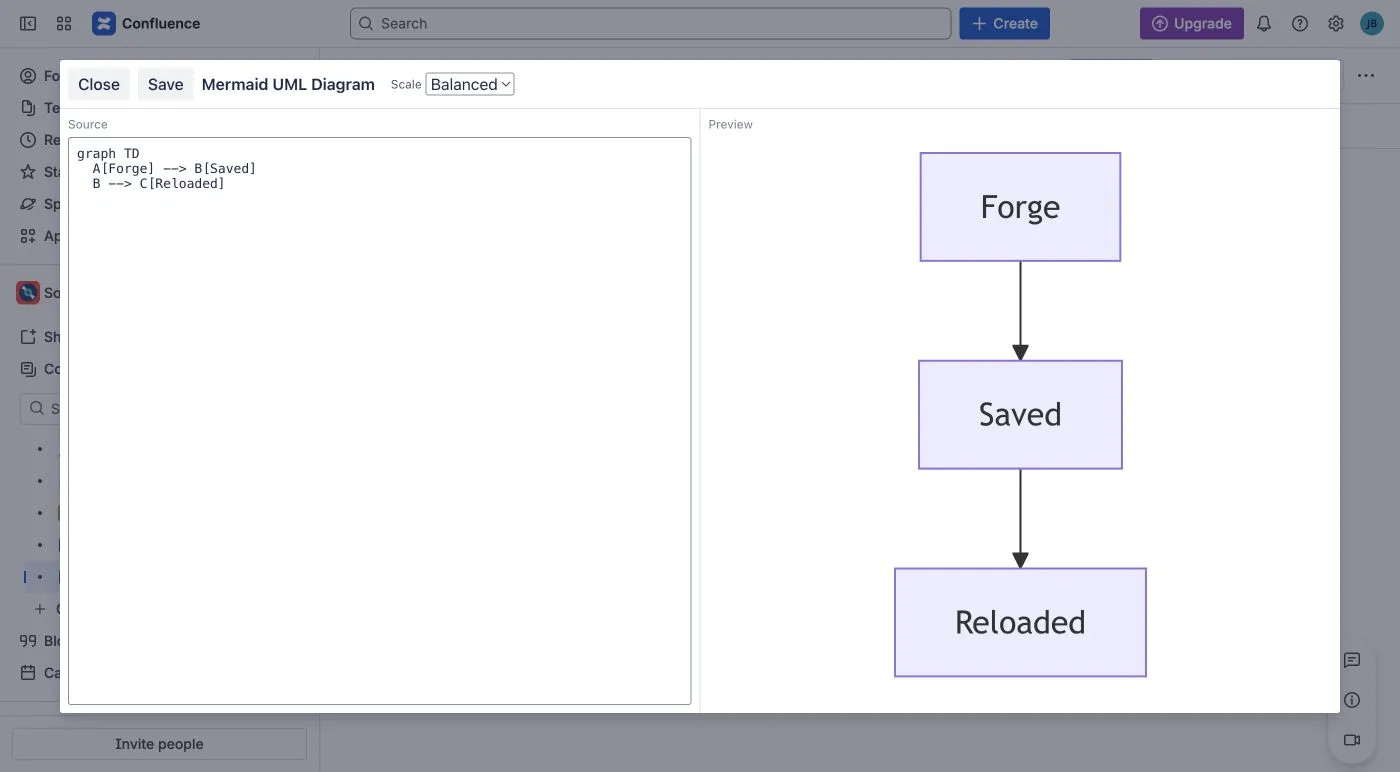

Mermaid editor with source on the left and the rendered preview on the right

The source and preview appear side by side. The screenshot uses different sample text to show the editor layout.

Try a Graphviz relationship graph

Insert Graphviz Diagram and enter:

digraph {
  rankdir=LR;
  Request -> Review;
  Review -> Approved;
}

The preview should show a directed graph laid out from left to right. Use the Graphviz gallery for additional DOT examples.

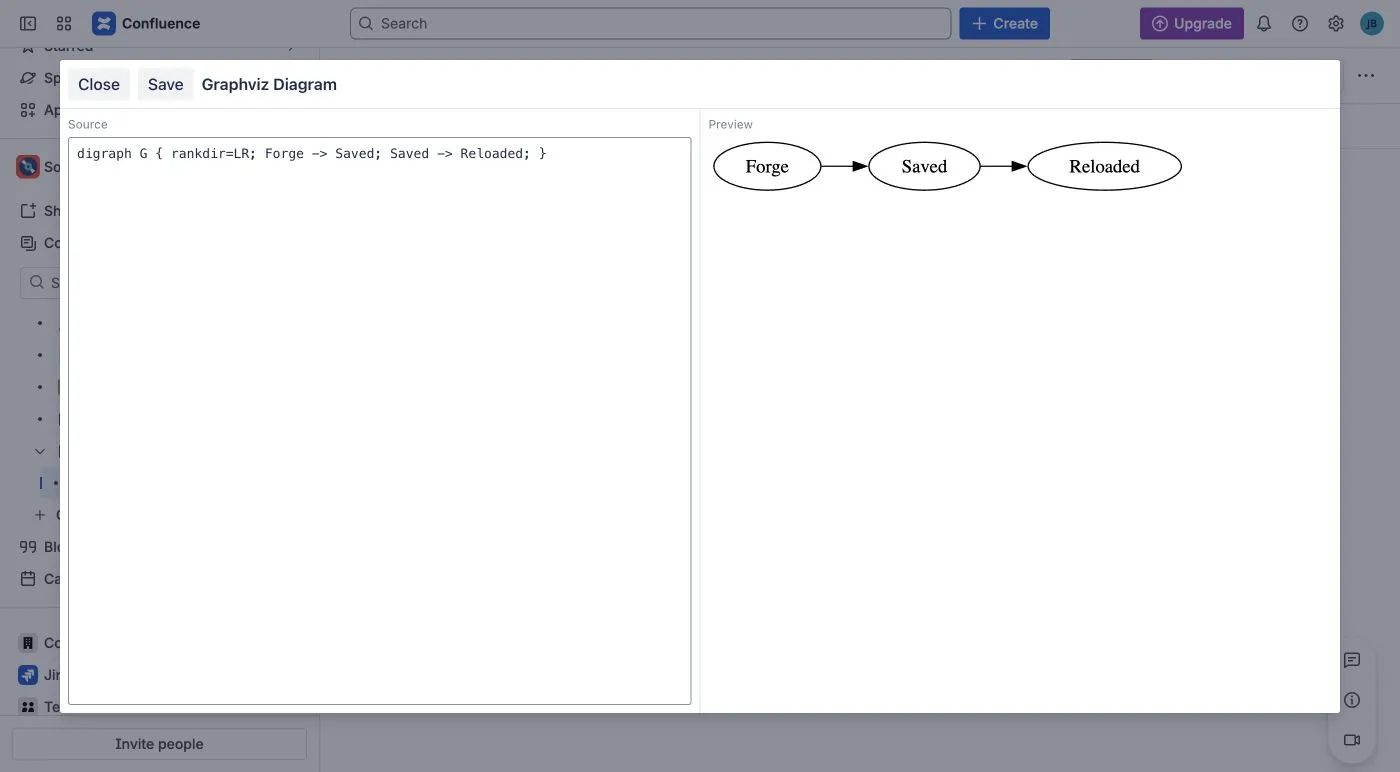

Graphviz editor with DOT source and a rendered left-to-right graph

Graphviz calculates the layout from DOT source. The screenshot uses different sample text to show the editor layout.

Try a PlantUML sequence

Insert PlantUML Diagram and enter:

@startuml
Requester -> Reviewer: Submit
Reviewer --> Requester: Approved
@enduml

The preview should show two participants and two messages. Use the PlantUML language reference for other diagram types.

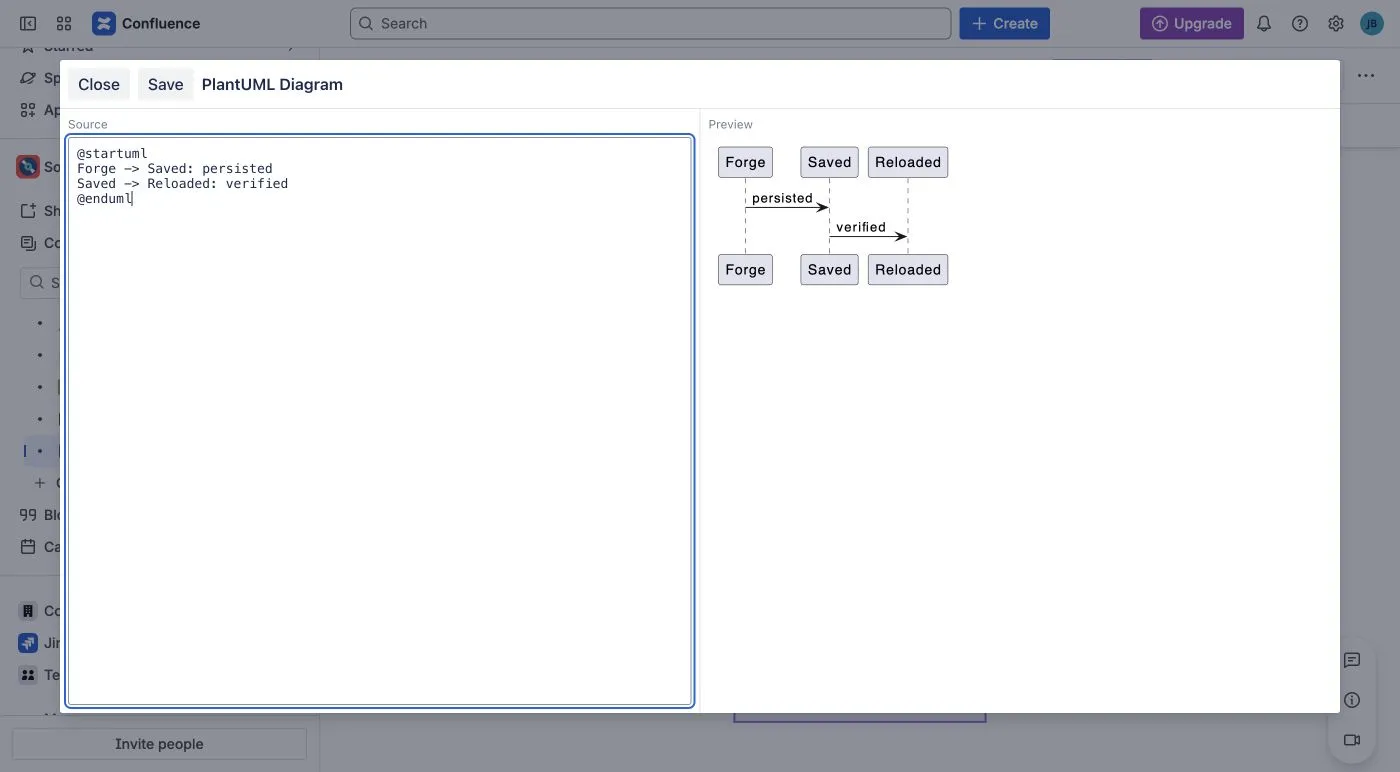

PlantUML editor with sequence source and its rendered diagram

PlantUML renders the source beside the editor. The screenshot uses different sample text to show the editor layout.

Work safely with source

Keep a copy of source before reducing a failing diagram to a smaller example.
Do not save while the preview still represents older source.
Treat arrows as visual relationships. They do not become Confluence links or executable actions automatically.
Review the published result after every change to configuration or syntax.
